At the heart of the GFX 100S platform is the 102MP 44 x 33mm BSI CMOS sensor, which offers the ultra-high resolution coveted by stills photographers as well impressive 4K video recording options, too. The sensor pairs with the X-Processor 4 in order to output 16-bit raw imagery with a broad dynamic range, low noise levels, and sensitivity to an ISO 12800, and the BSI design of the sensor contributes to high clarity and accurate color rendering when working in a variety of lighting conditions. In terms of video, DCI and UHD 4K video recording is possible at 4:2:0 10-bit internally, 4:2:2 10-bit via HDMI, or raw 12-bit if recording externally, and an F-log gamma setting can also be used for more advanced color grading during post-production. Beyond high-resolution shooting, the unique sensor design also incorporates a sophisticated hybrid AF system that features 425 selectable phase-detection points, which cover nearly the entire frame, and aid with precise face and eye-detection modes.
Balancing the awesome sensor design is a notably compact form factor, which opens up a range of new working scenarios for this high-res platform. Sleek and lightweight, the portability of the GFX 100S is backed up by capable in-body image stabilization that compensates for up to 6 stops of camera shake for improved handheld shooting. Conversely, this stabilization system also enables making 400MP files using Pixel Shift Multi-Shot mode for extreme detail of still subjects. Also contributing to the sleek form factor is a fixed 3.69m-dot EVF for bright eye-level viewing and a rear 3.2″ touchscreen LCD with a three-way tilting design.
102MP BSI CMOS Sensor and X-Processor 4
Utilizing a large and exceedingly high 102MP resolution 43.8 x 32.9mm BSI CMOS sensor and X-Processor 4, the GFX 100S is capable of delivering 16-bit stills with wide dynamic range as well as a broad sensitivity range of ISO 100-12800, which can be extended to ISO 50-102400. The large size of each pixel allows for more efficient light gathering, too, for smoother tonal and color transitions to produce a characteristic three-dimensional “medium format look.” Also contributing to several medium format looks, a variety of traditional medium and large format aspect ratios can be used in addition to the standard 4:3, including 1:1, 65:24, 5:4, 7:6, 3:2, and 16:9.
The image processor and sensor also lend a versatile edge to the system, and permit shooting continuously up to 5 fps or for recording DCI and UHD 4K30 video.
UHD and DCI 4K Video Recording
Utilizing the large sensor size for more than just stills, the GFX 100S also offers an enticing array of video capabilities, including internal UHD and DCI 4K30p video recording at up 4:2:0 10-bit, as well as 4K30p 4:2:2 10-bit via HDMI output, both at up to 400 Mb/s-and simultaneous external and internal recording is possible. If working with an Atomos Ninja V, then UHD 4K30p raw 12-bit output is also possible using the Apple ProRes RAW format.
Greatly benefitting overall video performance, the speed of the quad-CPU X-Processor 4 enables fast read speeds when recording 4K video, which helps to reduce rolling shutter distortion when filming moving subjects.
In addition to the supported 10-bit color depth, the GFX 100 also includes the F-Log gamma setting, which provides a flat picture for use in advanced color grading software during editing. This maximizes the potential dynamic range in difficult scenes and image adjustments can be made, as well, to highlight tone, shadow tone, color, and sharpness. HLG recording is supported, too, for HDR applications, and F-Log, HLG, and Film Simulations can all be used simultaneously with raw external output.
Also, the camera features a 3.5mm microphone jack and 3.5mm headphone jack for more advanced audio solutions.
Sensor-Shift Image Stabilization
Built-in 5-axis sensor-shift image stabilization helps to minimize the appearance of camera shake to better suit handheld shooting. This system works in conjunction with any lens, including non-stabilized ones, but when used with OIS-enabled lenses offers up to approximately 6 stops of shake reduction.
Body Design
Updated body shape is noticeably more compact and lightweight than previous GFX 100 models, making it especially well-suited for handheld shooting on location and in studio environments.
Magnesium alloy body construction is both lightweight and durable, and the camera system is weather sealed to render it moisture- and dust-resistant, as well as freezeproof down to 14°F, for use in inclement conditions.
Fixed 3.69m-dot OLED electronic viewfinder is featured for high-resolution, 0.77x-magnification eye-level viewing.

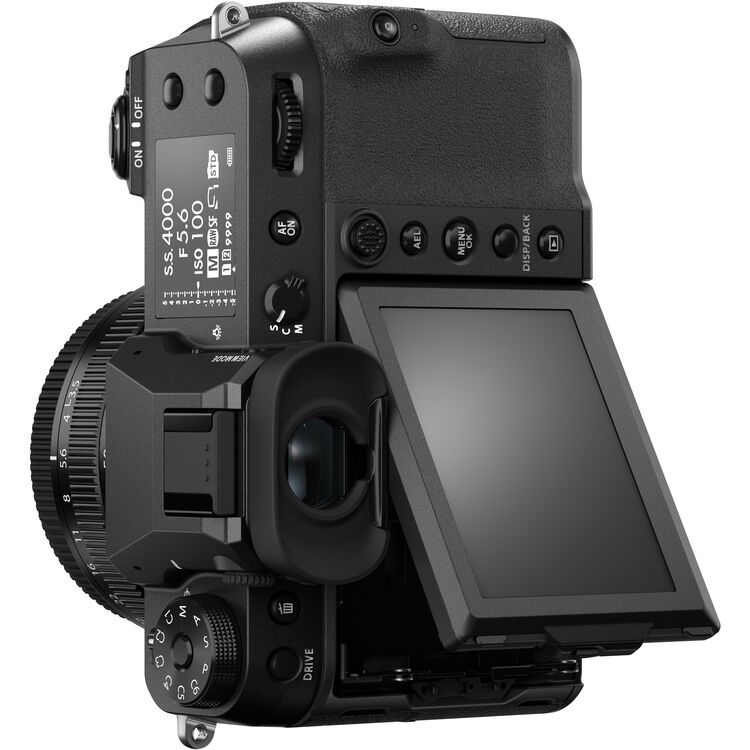

A 3.2″ 2.36m-dot touchscreen LCD is also available for image playback, menu navigation, and live view shooting. This LCD features a unique three-way tilting design that moves both upward and downward for shooting from high and low angles, and also tilts to the side to benefit shooting in the vertical orientation when in live view.
Single NP-W235 rechargeable lithium-ion battery is rated to provide approximately 460 shots per charge.

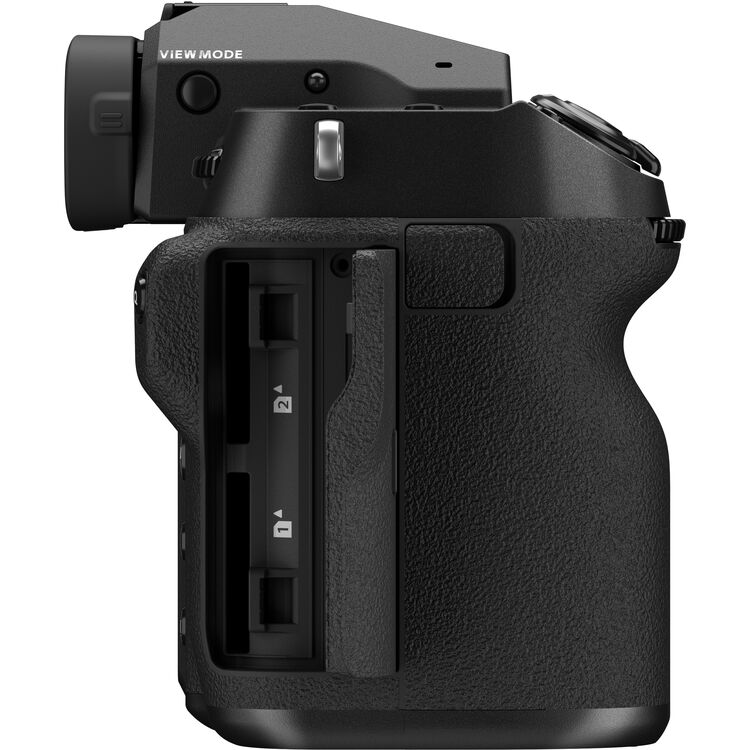

Dual UHS-II SD memory card slots are featured, and permit saving imagery in a sequential manner, backup/duplicate manner, or in a sorted manner to segregate JPEG and raw files.
The FUJIFILM G lens mount features a short focal flange distance of just 26.7mm to better facilitate adapting lenses and to allow for reduced back focusing distances to better prevent vignetting and promote edge-to-edge sharpness with the GF series of lenses.

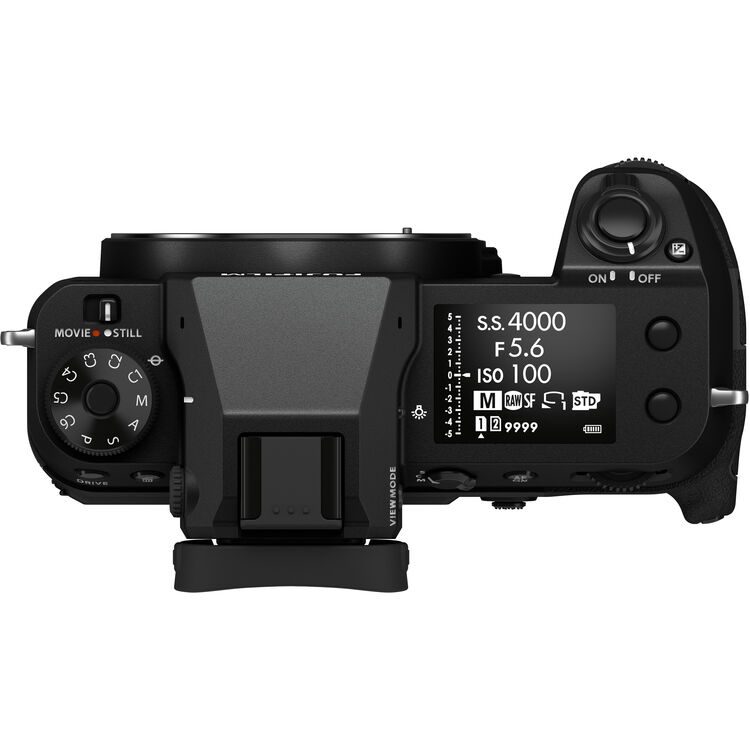

A 1.8″ sub-LCD monitor on the top plate can be used to quickly view shooting settings and exposure data.
Exposure mode dial on the top plate also incorporates six custom positions for quickly switching between pre-configured exposure settings.
Integrated Bluetooth 4.2 low energy and Wi-Fi allows you to wirelessly share images to a mobile device or use the device to remotely control the camera.
Hybrid Autofocus System
The sensor’s design also includes an expanded phase-detection autofocus system, which has 425 selectable points that cover nearly the entire sensor area. This AF system delivers fast and accurate focusing performance along with low-light sensitivity down to -5.5 EV. Complementing the imaging and focusing capabilities, an updated X-Processor 4 is also featured, and delivers fast focus response for subject tracking and also supports Face- and Eye-Detection AF when working in AF-C mode and when recording video.
Other Camera Features
Film Simulation modes allow you to reproduce the look and feel of several of FUJIFILM’s film types, including the newly introduced Nostalgic Neg. effect, along with Provia, Velvia, Astia, Classic Chrome, Classic Neg., Pro Neg. Hi, Pro Neg. Standard, Eterna, Eterna Bleach Bypass, Acros, Monochrome, and Sepia. Additionally, Grain Effect can be adjusted as well as Classic Chrome effect to fine-tune the look of imagery.
Pixel-Shift Multi-Shot mode is capable of producing massive, 400MP images by combining 16 raw images using FUJIFILM’s Pixel Shift Combiner software, which can then be output as a DNG file for further processing using most popular editing software.
Interval shooting is possible for up to 999 consecutive frames with a 1 sec to 24-hour delay between exposures, as well as up to a 24-hour shutter delay.
Multiple Exposure mode lets you shoot two consecutive overlaid frames, and the first frame will be shown on the rear LCD to aid in alignment for the second exposure.
A variety of file formats are available depending on your workflow needs and include uncompressed and compressed raw file types; Super Fine, Fine, and Normal JPEG settings; and TIFF files can be output via in-camera raw file development.
